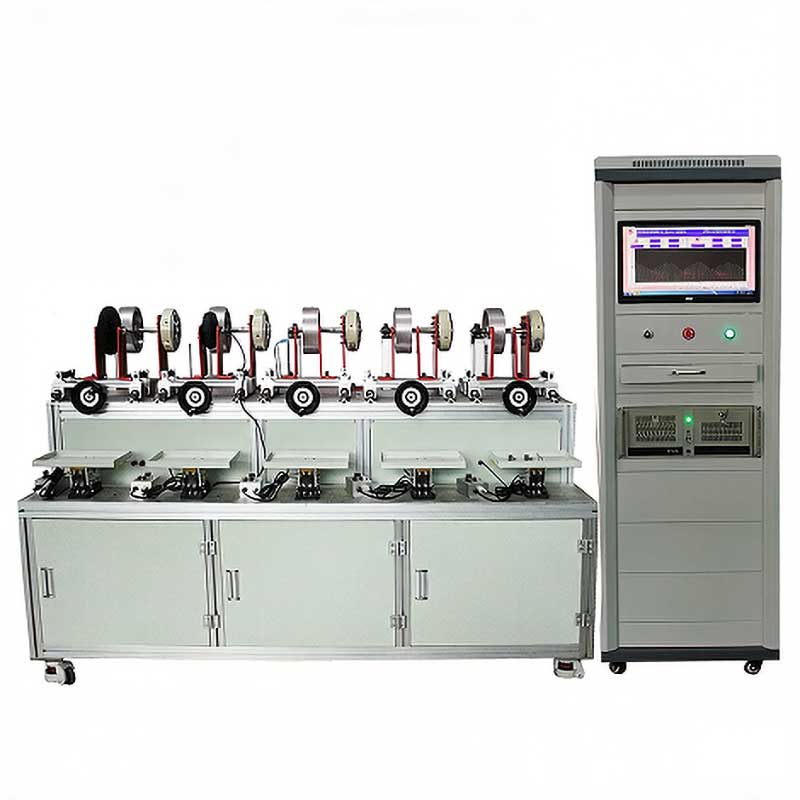

5-Station Scooter Controller Test System

This page provides a detailed overview of the 5-Station Scooter Controller — including features, specifications, test standards, and applications.

---

Why Choose a 5-Station Scooter Controller Test System?

Solving the Production Bottleneck for High-Volume EV Assembly

In high-volume electric scooter manufacturing, the End-of-Line (EOL) testing phase is often where production slows to a crawl. If your assembly line is moving faster than your quality control, you aren’t just losing time—you’re losing money. I recommend the 5-Station Scooter Controller Test System because it fundamentally changes the math of your factory floor by allowing five units to be verified simultaneously.

Feature	Single-Station Tester	5-Station Synchronous System
Throughput	Sequential / Low	Parallel / High
Labor Efficiency	1 operator per 1 unit	1 operator per 5 units
Line Integration	Often causes “bottlenecks”	Maintains seamless flow
Footprint	High (multiple machines needed)	Optimized (compact rack design)

Why Multi-Channel Testing is Non-Negotiable

Our system is engineered to handle the rigorous demands of Automated Quality Control (AQC). By deploying a multi-channel controller test bench, we address the most common factory floor worries:

• Zero-Idle Operation: While one station completes a high-precision MOSFET performance check, others are being loaded or unloading finished units.
• Scalable Throughput: This setup is designed specifically for high-volume EV assembly, ensuring that your testing capacity scales directly with your output goals.
• Reduced Total Cost of Ownership (TCO): You save on floor space, energy consumption, and labor costs by consolidating five independent testing nodes into a single, high-efficiency EV component testing solution.

If you are managing a global scooter or e-bike brand, the ability to maintain a steady, rapid production line diagnostic flow is your competitive advantage. We’ve designed this hardware to ensure that quality verification is never the reason your shipments are delayed.

High-Efficiency EOL Testing Advantages

We designed our 5-station scooter controller test system to tackle the biggest hurdle in EV assembly: the testing bottleneck. Standard setups usually test one unit at a time, which creates a massive lag in high-volume production. By moving to a multi-channel functional tester (FCT) design, we’ve effectively eliminated that downtime.

Why Synchronous Design Boosts Throughput by 80%

Traditional testers keep your assembly line waiting. Our system changes the math by running five independent test channels at the same time. This synchronous workflow ensures that your production line diagnostic station never falls behind.

• Zero Idle Time: Each of the 5 stations operates independently. If one controller fails, the others keep moving.
• Parallel Processing: We handle communication checks, load tests, and safety verifications across all five units simultaneously.
• Compact Footprint: You get five times the output without taking up five times the floor space.
• Rapid Cycle Times: Our optimized Automated Quality Control (AQC) system slashes the average test time per unit, allowing for a steady flow of “Pass” results to the packaging stage.

Test Setup	Typical Throughput	Efficiency Gain
Single-Station Tester	40-50 units/hour	Base Level
5-Station System	180-220 units/hour	+80% to 100%

By integrating this multichannel functional tester into your EOL (End-of-Line) process, I’ve seen clients significantly lower their cost-per-test while maintaining 100% quality assurance. It is the most direct way to scale your output without adding extra labor or massive floor space.

Comprehensive Performance Verification for the 5-Station Scooter Controller Test System

We don’t believe in “good enough” testing. To ensure every unit leaving your line is bulletproof, our 5-station scooter controller test system performs deep-dive performance verification that mimics actual road conditions. We focus on how the controller handles the physical stress of a high-torque commute.

Real-World Motor Load Simulation

Using integrated high-precision electronic loads, we simulate the exact behavior of a BLDC motor controller tester. This goes beyond simple voltage checks; we apply variable resistance to represent steep inclines, heavy cargo, and rapid acceleration. If the controller can’t handle the simulated “hill,” it doesn’t pass.

MOSFET Stability and Thermal Stress

The heart of any controller is the power electronics. Our system includes a dedicated MOSFET performance verifier to monitor switching efficiency and thermal stability. By pushing high currents through the circuits, we identify weak soldering or sub-par components before they cause a field failure.

Core Verification Metrics:

• Dynamic Torque Response: How quickly the controller reacts to load changes.
• Peak Current Endurance: Testing the limits of the power stage without failure.
• Thermal Dissipation: Ensuring the scooter power electronics tester detects abnormal heat spikes.
• Back-EMF Protection: Verifying the controller survives the energy fed back from the motor during braking.

Test Parameter	Verification Method	Quality Target
MOSFET Switching	PWM Signal Consistency	Zero jitter at max load
Load Stability	Real-time Load Step Testing	<1% deviation
Efficiency	Input vs. Output Power Mapping	>95% at nominal load

By stressing the hardware in a controlled environment, we provide a smart mobility testing laboratory experience right on your factory floor. This ensures that every controller is not just functional, but reliable under pressure.

Precise Static and Dynamic Analysis in the 5-Station Scooter Controller Test System

To guarantee a premium ride, we focus on the fine details of signal integrity. Our 5-Station Scooter Controller Test System performs deep-dive diagnostics into both idle and active states, ensuring every unit meets strict performance benchmarks before it hits the assembly line.

Key Signal Verification Metrics

We utilize a High-Precision Electronic Load and advanced signal analyzers to monitor:

• Standby Current: We measure micro-amp leakage with extreme precision to prevent battery drain issues for the end-user.
• PWM Signal Accuracy: Real-time analysis of Pulse Width Modulation to ensure perfect motor timing and energy efficiency.
• Dynamic Load Response: Tracking how the BLDC motor controller reacts to rapid throttle changes and shifting torque demands.
• Signal Noise & Ripple: Identifying “dirty” power signals that could compromise the long-term stability of the MOSFET performance.

By catching these subtle signal deviations during the Multichannel Functional Tester (FCT) phase, we eliminate the “ghost” failures that often plague low-quality controllers. This level of precision is exactly what global brands need to maintain a zero-defect production standard.

Safety Protection Protocols for the 5-Station Scooter Controller Test System

Safety isn’t just a checkbox; it’s the core of our Automated Quality Control (AQC) System. I’ve designed our 5-station scooter controller test system to push hardware to its absolute limits before it ever reaches a customer. By simulating extreme electrical and thermal conditions, we ensure your EV component testing solutions meet strict global safety standards.

Our automated protocols focus on three critical failure points that can make or break a product’s reputation:

• Over-Current Protection (OCP): We verify the controller’s ability to shut down instantly during a current surge, preventing fire hazards and protecting the internal circuitry.
• Under-Voltage Lockout (UVLO): The system ensures the BLDC motor controller tester triggers a safe shutdown when battery levels drop too low, preventing permanent damage to the battery pack.
• Thermal Cutoff Thresholds: We monitor heat dissipation in real-time. The test bench validates that the controller properly throttles or cuts power if temperatures exceed safe operating limits.

By integrating these Automated Safety Protection Protocols, we help you eliminate the risk of expensive field recalls. We make sure every unit serves as its own MOSFET performance verifier, ensuring total reliability for high-volume smart mobility production.

Smart Communication Diagnostics for the 5-Station Scooter Controller Test System

Validating CAN-bus, UART, and LIN-bus Integrity

In smart mobility, the controller is the brain of the vehicle. If it cannot communicate clearly with the battery, motor, or dashboard, the scooter is essentially useless. I have integrated high-level Smart Communication Diagnostics into our 5-Station Scooter Controller Test System to ensure that every unit speaks the right language without any data loss or lag.

Our Industrial ECU Test Stand setup ensures that every controller can handle the complex messaging required by modern EV ecosystems. We focus on the data layer to eliminate “ghost” faults that often lead to expensive warranty claims.

• Multi-Protocol Verification: We test CAN-bus, UART, and LIN-bus protocols simultaneously across all five stations to guarantee 100% firmware and hardware compatibility.
• Precision Signal Analysis: Using an integrated CAN-bus Signal Analyzer, the system detects timing errors, voltage offsets, and packet drops that standard testers often miss.
• Stress-Testing Data Loads: I’ve designed the software to simulate heavy data traffic, ensuring the controller remains stable even when the vehicle’s network is crowded with signals.
• Instant Error Flagging: If a checksum doesn’t match or a response time lags by even a few milliseconds, the system stops the process, ensuring only perfect units move forward.

By verifying protocol integrity at the production stage, you ensure a seamless user experience and a much more reliable final product.

Industrial Hardware Architecture of the 5-Station Scooter Controller Test System

I built this system to handle the brutal reality of 24/7 high-volume factory floors. We use a standard 19-inch rack-mount design, ensuring the hardware is both organized and incredibly durable. This isn’t just about looks; it’s about providing a stable environment for sensitive electronics in an industrial setting.

Built for 24/7 Industrial Reliability

Every component in the 5-Station Scooter Controller Test System is selected for its ability to run non-stop. We use heavy-duty steel casing and advanced cooling to prevent thermal drift during long shifts.

• Modular Layout: Each of the 5 stations is isolated to prevent interference.
• Heavy-Duty Power Rails: Stable energy delivery for high-current testing.
• Plug-and-Play Maintenance: Swap out modules in minutes without shutting down the whole line.

Technical Hardware Specifications

Component	Feature	Benefit
Chassis	19-Inch Industrial Rack	Space-saving and highly durable
Cooling	Forced-air Thermal Management	Prevents overheating during 24/7 use
I/O Interface	High-Density Aviation Plugs	Secure, fast, and noise-free connections
Load Module	Precision Electronic Loads	Simulates real-world motor resistance
Safety	Emergency E-Stop & Isolation	Maximum operator and equipment protection

This hardware architecture ensures that your Multi-Channel Controller Test Bench remains the most reliable part of your assembly line, keeping downtime to an absolute minimum.

Derui Soft-Link: The Brain of Our 5-Station Scooter Controller Test System

Hardware is only as good as the software running it. Our Derui Soft-Link Software Suite transforms the 5-Station Scooter Controller Test System from a basic diagnostic tool into a fully integrated Automated Quality Control (AQC) system. We designed this interface to give production managers total visibility while keeping the operation simple for floor technicians.

Intelligent Data Logging and Real-Time UI

The software provides a high-resolution, real-time dashboard that monitors all five stations simultaneously. It captures every nuance of the BLDC motor controller tester output, ensuring no deviation goes unnoticed.

• Visual Pass/Fail Indicators: Instant color-coded feedback for high-speed throughput.
• Precision Waveform Display: Real-time monitoring of PWM signals and current stability.
• Customizable Test Sequences: Easily modify parameters for different scooter models or power ratings.

Full ERP Traceability and MES Integration

In modern manufacturing, data is everything. Our software ensures that every controller passing through the Production Line Diagnostic Station is documented and searchable.

• MES/ERP Connectivity: Seamlessly upload test results to your central database via SQL or Web API.
• Digital Birth Certificates: Every unit is linked to a unique serial number, logging its MOSFET performance and safety thresholds.
• Cloud-Ready Reporting: Generate automated PDF or Excel reports to analyze yield rates and identify production trends.

By bridging the gap between the test bench and your management software, the Derui Soft-Link suite ensures your 5-Station Scooter Controller Test System delivers more than just “pass” or “fail”—it delivers actionable industrial intelligence.

Industrial Applications and ROI for the 5-Station Scooter Controller Test System

I’ve seen firsthand how production bottlenecks can kill a brand’s growth. We built the 5-Station Scooter Controller Test System to ensure your assembly line never stops. This isn’t just a piece of lab equipment; it’s a rugged Industrial ECU Test Stand designed for the high-pressure environment of global e-mobility manufacturing.

Where This System Wins

Our EV Component Testing Solutions are currently powering production lines across the globe, specifically for:

• High-Volume E-bike Assembly: Keeping up with the massive demand for urban micro-mobility.
• Shared Scooter Fleets: Validating heavy-duty controllers that need to survive 24/7 outdoor use.
• Tier-1 Suppliers: Providing a reliable Multi-Channel Controller Test Bench for third-party quality assurance.

The Bottom Line: Why the ROI Makes Sense

Investing in a 5-Station Scooter Controller Test System pays for itself faster than almost any other tool on the floor. When you move from single-point testing to a Multi-Channel Functional Tester (FCT), the math is simple:

Metric	Single Station	5-Station System
Throughput	1x Capacity	5x Capacity
Labor Cost	High (Per Unit)	Drastically Lower
Floor Space	Bulky Setup	Compact 19-inch Rack
Data Recovery	Manual/Siloed	Automated ERP Sync

By integrating this Automated Quality Control (AQC) System, you aren’t just catching defects—you’re optimizing your entire workflow. We’ve designed this to be fully scalable, meaning as your brand grows from local hero to global player, our testing tech grows right along with you.

5-Station Scooter Controller Test System FAQs

We get a lot of questions about how to maximize the 5-Station Scooter Controller Test System on the floor. Here are the straight answers on how we handle performance, upkeep, and reliability.

How fast is the testing cycle?

Efficiency is the core of this Production Line Diagnostic Station. Because we use a synchronous design, you can test five units at once.

• Average Cycle Time: Typically 25–40 seconds per batch, depending on the complexity of your BLDC Motor Controller Tester parameters.
• Throughput: This setup effectively cuts your testing bottleneck by nearly 80% compared to single-station benches.

How often do we need to calibrate the system?

To keep your Automated Quality Control (AQC) System accurate, we recommend a standard calibration schedule:

• Routine Checks: Every 6 months for high-precision voltage and current sensors.
• Precision Loads: Our High-Precision Electronic Load modules are built for stability, but an annual deep-dive calibration ensures your MOSFET Performance Verifier data stays ISO-compliant.

What kind of maintenance is required for 24/7 use?

We built this system for heavy-duty industrial environments. Maintenance is minimal but essential:

• Daily: Visual check of the heavy-duty 19-inch rack and connector pins.
• Monthly: Clean the cooling fans and check for any wear on the interface cables.
• Software: The Derui Soft-Link suite features self-diagnostics that alert you to hardware drift before it causes downtime.

Does it support different communication protocols?

Yes. As a versatile CAN-bus Signal Analyzer, our system is fully compatible with:

1. CAN-bus (Common for high-end electric scooters)
2. UART (Standard for most mid-range controllers)
3. LIN-bus (Used for peripheral communication)

Feature	Specification
Number of Stations	5 Independent or Synchronous
Protocol Support	CAN, UART, LIN-bus
Cooling	Industrial-grade Air Cooling
Data Integration	Full ERP/MES Traceability

Can we test different controller models on one system?

Absolutely. This Multi-Channel Controller Test Bench is highly scalable. You can quickly switch between different scooter or e-bike controller profiles within the software. It’s a future-proof EV Component Testing Solution that grows with your product line.

---

---
